This is a stainless steel spiral stringer.
The pipe specs are as follows :
8" Sch 40 Pipe (219 x 8mm Round Tube)
Radius on plan 1720mm.
Height 3200mm.
Slope of stringer 36 degrees.
Pipe still needs to be polished and buffed.
Rolling done by Topring Rollers, Fabrication to be done by Stairs by Peter.

Father and sons Kruger Park Weekend

1948 Chev Coupe

This is a build that we bought as you see it. We replaced all jag suspension bushes and tie rod ends and ball joints. The vehicle has been rewired, new carpeting and sound proofing. The car is running. The papers need to be sorted as the vehicle was scrapped, but not too much of a mission to register it as a rebuild. We bought this to keep us busy over the strike. The 1939 Coupe Hotrod I am busy with is my first priority, so this one is for sale. Contact me on 082 494 5991 / dieter.dedekind@gmail.com for more info.

Chevy Coupe Grille

This is a picture of the design that I made on CAD and had laser cut to fit the 1939 Chevy Coupe.

After rolling the plate to required radius, I put it in the press to give the final finish. When I do the one that will be installed (from polished stainless), I will make a few changes, but here is the sample which fits pretty well.

Some projects I have done at Topring Rollers.

6mm Mesh cones.

89 o/d Stainless Steel pipe (100m long) coiled to 2400mm i/diam.

260 x 90 Channel Stringers for spiral staircase.

200 x 75 Channel frame, Soccer ball frame made from 32 x 32 square tube. Made for our premises over the 2010 FIFA world cup in South Africa.

89 o/d Round tube inner and outer stringers for spiral staircase.

32mm Round tubes rolled to various radii for sculpture. Rolling done for Beth Dianne Armstrong.

2mm 309 Stainless steel cyclone, rolled and fabricated.

8mm Mild steel cones made up to form a bell-mouth.

3mm Mild steel plate rolled and bent to make up a bottle clamp.

80 x 80 x 6 Square tube bent up for boat trailer axle.

50 x 5 Flat bars rolled as cones to make up small diameter bird mouth up angle ring.

48 Kg rails rolled for offset track.

DNA Helical sculpture, from 16mm at the bottom to 50mm at the top.

I did the rolling and built the variable radius spiral on a jig in our workshop. The installation and glass blowing was done by The Crucible.

89 o/d inner and outer stringers for spiral staircase.

8mm Stainless steel square bar coiled to 25mm i/diam.

 114mm Stainless steel pipe for treads and 38mm pipe for handrail. Work in progress.

Finished product - done by Steel Studio International.

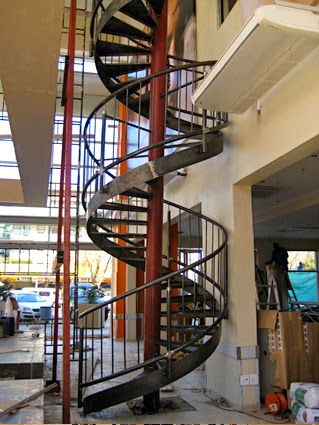

 200 x 75 Channel stringers, installation done by MSM Services.

 114 o/d pipe (expansion join)

 300 x 10 Flatbar rolled to 300 i/diam, used for centre post on spiral staircase.

 168 o/diam pipe spiral.

 114 o/d stainless steel inner and outer stringers.

 114 o/d mild steel stringer.

 260 x 90 channel stringers.

34 o/d stainless steel pipes, pancake coil and vertical coil.

 Structure made for Singapore expo.

 200 x 10 Stringer and 50mm handrails.



  260 x 90 Channel stringers.

20mm Stainless steel square bar coiled with pitch.
